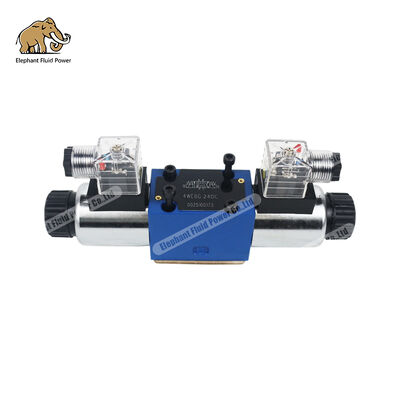

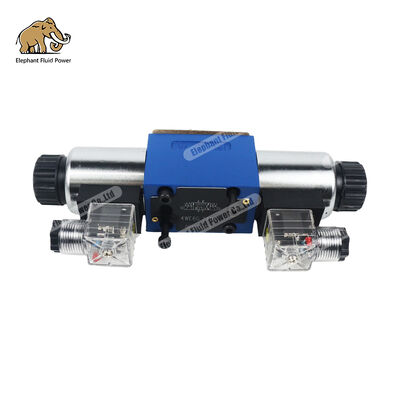

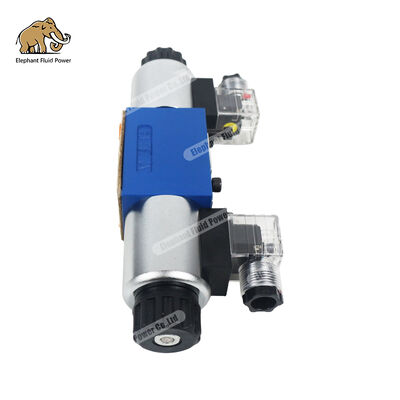

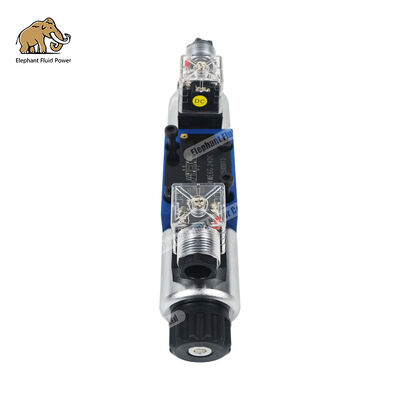

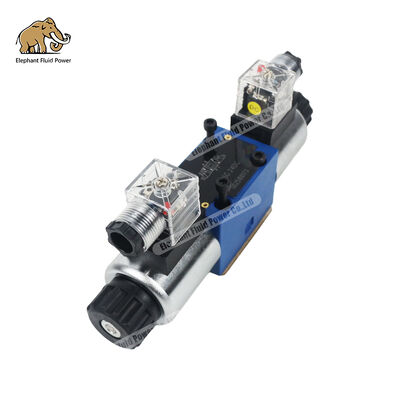

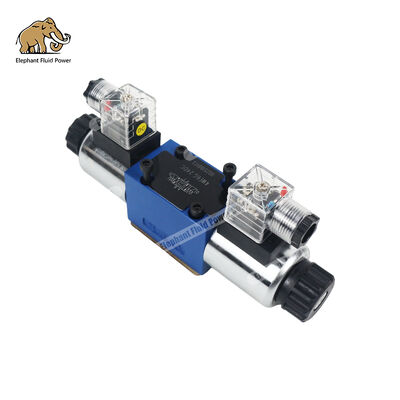

Original Parts Rexroth Directional Spool Valve 4WE6G
Elephant Fluid Power provides Original Parts Rexroth Directional Spool Valve 4WE6G, featuring excellent quality, competitive pricing, fast lead times, and comprehensive after-sales services.
Technical Specifications
The 4WE type electromagnetic directional valve features a magnetic guide sleeve thread that screws directly into the upper thread of the valve body. The thrust generated when the electromagnet is energized directly drives the spool valve for reversing movement, controlling oil direction for start, stop, and commutation operations. Available in four voltage options: 12V, 24V, 110V, and 220V.
| Product Family |
WE6../E |
| Maximum Operating Pressure |
350.0 bar |
| Maximum Flow |
80.0 l/min |
| Spool Symbol |
Symbol G |
| Connection Type |
Subplate Mounting |
| Size |
6 |
| Actuation Type |
Solenoid Actuation |
| Number of Ports |
4 |
| Number of Switching Positions |
3 |
| Supply Voltage |
24 VDC |
| Electrical Connector |
Connector, 3-pole (2 + PE) |
| Electrical Connection Description |
Connector 3-pole (2 + PE) according to EN 175301-803 |
| Hydraulic Fluid |
HFC HL HLP HLPD HVLP HVLPD |
| Seals |
NBR |
| Weight |
1.96 kg |
4WE Valve Product Range
12V Models: 4WE6GA61B/CG12N9Z4, 4WE6GA61B/CG12N9Z4/FS1, 4WE6GA61B/CG12N9Z4/FS2, 4WE6GA61B/CG12N9Z5L
24V Models: 4WE6GA61B/CG24N9DL, 4WE6GA61B/CG24N9K4, 4WE6GA61B/CG24N9Z4, 4WE6GA61B/CG24N9Z4/FB1, 4WE6GA61B/CG24N9Z4/FS1, 4WE6GA61B/CG24N9Z4/FS2, 4WE6GA61B/CG24N9Z4/V, 4WE6GA61B/CG24N9Z5L, 4WE6GA61B/CG24N9Z5L/FS2, 4WE6GA61B/CG24N9Z5L/V, 4WE6GA61B/CG24N9Z5LB10
Additional Hydraulic Products
In addition to hydraulic valves, we supply comprehensive hydraulic solutions including pumps, motors, and replacement parts from leading global manufacturers.
| Rexroth |
A2F12/23/28/55/80/107/160/200/225/250/335/500, A2FO10/12/16/23/28/32/45/56/63/80/90/107/125/160/180/200/250/500, A7V28/55/80/107/160/225/250/355/500/1000, A6VM(A7VO)/12/28/55/80/107/160/200/250/355/500, A4VSO45/71/125/180/250/500/1000, A4V40/56/71, A4VG28/40/45/50/56/71/90/125/140/180/250, A4VTG71/90, A10VSO10/16/18/28/45/63/71/85/100/140, A10VG18/28/45/63, A11VO60/75/95/130/145/160/190/250/260 |
| Kawasaki |
K3SP36C, K3V63DT/112DT/140DT/180DT/280DT, K3VL28/45/60/80/112/140/200, K3VG63/112/180/280, K7V63/100, K7VG180/265, K5V80/140/160/200, NV45/50/60/64/70/80/84/90/111/120/137/172/210/237/270, NX15, NVK45, KVC925/930/932, M2X55/63/96/120/128/146/150/170/210, M5X130/150/173/180/500, MX50/80/150/173/200/250/450/500/530/750 |
| KAYABA |
MAG150/170, KYB87, MSG18P/27P/44P/50P, MSF series |
| Komatsu |
HPV 35/55/90/160 (PC60/120/200/220/300-3/5, PC400, PC650) |
| Libherr |
LPVD 35/45/64/75/90/100/125/140/165/225/250, FMV075/100, LMF(V)45/64/75/90/100/125/140 |
| Toshiba |
PVB80/92, PVC80/90, SG 015/02/025/04/08/12/15/17/20/25 |
| Linder |
HPV55/75/105/135/165/210/280, HPR75/90/100/130/160, MPR28/45/63/71, HMR75/105/135/165, HMF28/35/50, BPV35/50/70/100/200, B2PV35/50/75/105/140/186, BMF35/55/75/105/140/186/260, BMV35/55/75/105/135, BPR55/75/105/140/186/260 |
| Sauer |
PV90R(L)(M)030/42/55/75/100/130/180/250, PV42-28/41/51, SPV15/18, KRR(LRR)025C/030D/038C/045D, MR(MS)070/089/227/334 |
| Eaton |
3321/3331, 4621/4631, 5421/5431, 78461/78462 |
| Vicker |
PVE12/21/45, TA19/MFE19, PVM 018/020/045/050/057/063/074/081/098/106/131/141, PVH 57/74/98/131/141, PVB 5/6/10/15/20/29/45/90 |
| Yuken |
A10/16/22/37/40/45/56/70/90/100/125/145/220, A3H16/37/56/71/100/145/180 |
| Parker |
PVP16/23/33/41/48/60/76/100/140, PV 016/020/023/028/032/040/046/063/080/092/140/180/270, P2/3-060/075/105/145, PAVC 33/38/65/100 |
| Hitachi |
HPV050/102/105/118/135, HMGC16/32/48, HMGF35/36/38/57 |
| Tokiwa |
MKV23/33 |
| Uchida |
A10VD17/23/28/40/43/71, AP2D12/14/18/21/25/28/36/38/42, A8VO55/59/80/86/107/115/172 |
| Nachi |
YC35-6, PVD-2B-32/34/36/38/40/42/45/50, PVD-3B-54/56/60/66, PZ-6B-180/220, PVK-2B-50/505, PZ-4B-100, PVD-00B-14/16P, PVD-1B-23/28/32/34 |
Elephant Fluid Power Co., Ltd is a professional company integrated with hydraulic product manufacture, trade and technical service. We focus on superior quality, comprehensive service, competitive pricing, and provide complete solutions including free maintenance suggestions and technical consultation. We supply worldwide brand hydraulic products including Rexroth, Sauer, Vickers, Kawasaki, Linde, Eaton, Komatsu and more. We export to over 110 countries including America, Canada, Mexico, Peru, Russia, Czech Republic, Slovakia, Morocco, Ghana, Thailand, India and many others.
